YSA – Axial Locknut

Price range: ₹3,000.00 through ₹11,500.00

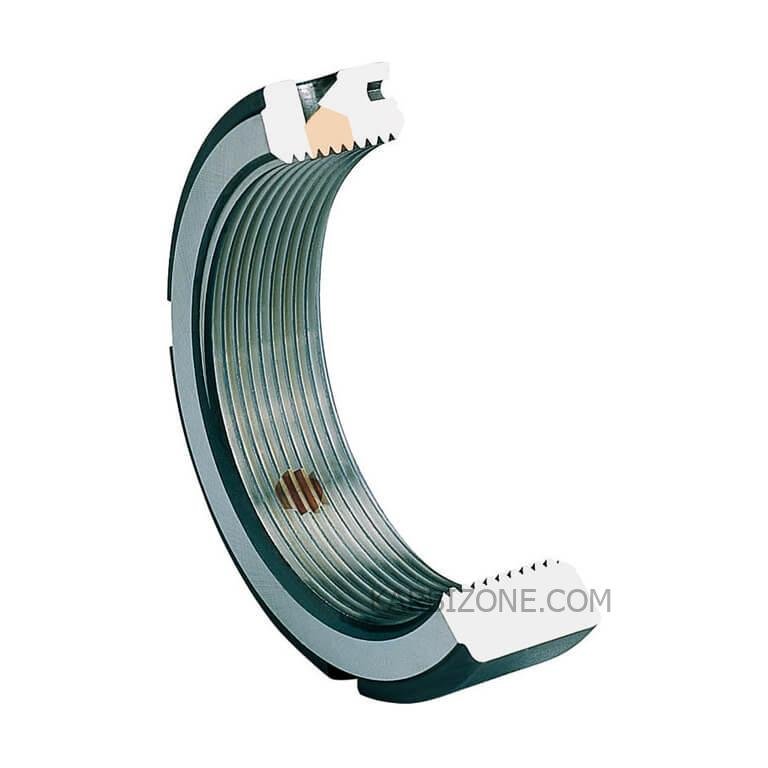

YSA Axial Locknut. This locknut employs 3 way axial locking with the same thickness as the YSF series. Locknut classified based on Size of Nut and Thread Size.

Locknut Size

Locknut Thread

Clear

SKU: N/A

Categories: Locknuts, YS Series

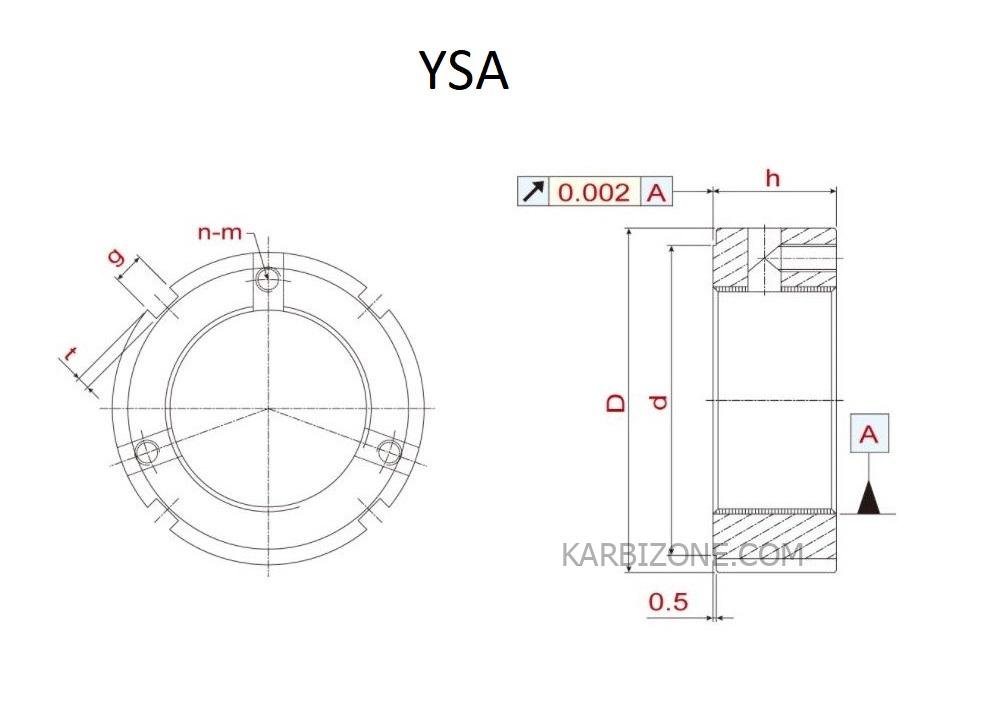

Thread	D	h	g	t	d	n-m	MAX Nm
M14x1.5	30	14	4	2	25	2-M4	3.5
M15x1
M16x1.5
M17x1	32	16			27
M18x1.5						3-M4
M20x1	38				33
M20x1.5
M22x1.5
M24x1.5		18	5
M25x1.5
M27x1.5	40				35
M30x1.5	45				40
M33x1.5	50				45
M35x1.5	52				47	3-M6	8
M36x1.5
M39x1.5	58	20	6	2.5	52
M40x1.5
M42x1.5	62				56
M45x1.5	65				59
M48x1.5	70				64
M50x1.5
M52x1.5	73	22	7	3	66
M55x1.5	75				68
M55x2
M56x2
M60x2	80				73
M64x2	85				78
M65x2
M68x2	92	24	8	3.5	84	3-M8	18
M70x2
M72x2	94				86
M75x2	98				90
M76x2
M80x2	105				96
M85x2	110				102
M90x2	120	26	10	4	108
M95x2	125				113
M100x2	130				118
M105x2	140	28	12	5	125
M110x2	145				132
M115x2	150				137
M120x2	155	30			142
M125x2	160				147
M130x2	165				152
M135x2	175	32	14	6	160	3-M10	35
M140x2	180				165
M145x2	190				175
M150x2	195				180
M155x3	200	34	16	7	180
M160x3	210				190
M165x3	210				190
M170x3	220				200
M180x3	230	36	18	8	205	3-M12	60
M190x3	240				215
M200x3	250	38			225
M210x3	260				240
M220x3	270				250
M230x3	280	40	20	9	258
M240x3	290				268
M250x3	300				278
M260x4	310		22	10	288	3-M14	100
M270x4	320				298
M280x4	330				308
M290x4	340	42	24	11	315
M300x4	350				325

Locknut Size	M80, M30, M135, M55, M210, M14, M85, M33, M140, M56, M220, M15, M90, M35, M145, M60, M230, M16, M95, M36, M150, M64, M240, M17, M100, M39, M155, M65, M250, M18, M105, M40, M160, M68, M260, M20, M110, M42, M165, M70, M270, M22, M115, M45, M170, M72, M280, M24, M120, M48, M180, M75, M290, M25, M125, M50, M190, M76, M300, M27, M130, M52, M200
Locknut Thread	1, 1.5, 2, 3, 4
