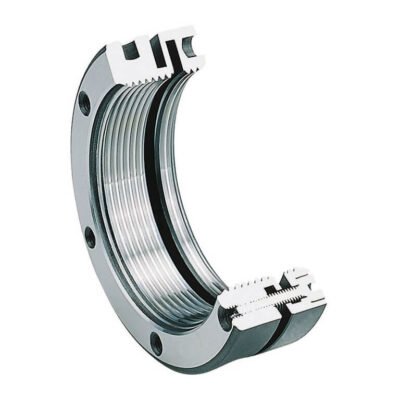

SGL – F Locknut

Price range: ₹5,000.00 through ₹6,000.00

SGL-F Flank Locking. The SGL-F Series locknuts employ 30°, 3 point locking. The outstanding design of the brass threads are perfectly matched and prevent any loosening whatsoever. 30° design locking screws also reduce torque on this product. Clamping rims, trailing rims, and outer skirts are all precision ground to conform to the high precision requirements of high rpms.

Locknut Size

Locknut Thread

Clear

SKU: N/A

Categories: Locknuts, Superfine Grinding Locknut

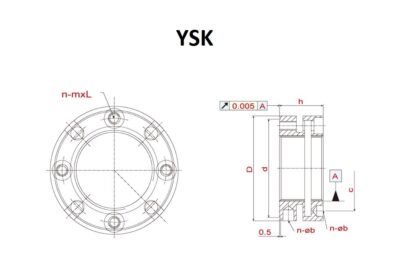

Thread	D	h	d	n-t x g	m	MAX Nm
M14 x 1.5	30	14	25	3 – 4 x 2	M5	4.5
M15 x 1	30	14	25	3 – 4 x 2	M5	4.5
M16 x 1.5	30	14	25	3 – 4 x 2	M5	4.5
M17 x 1	32	16	27	3 – 4 x 2	M5	4.5
M18 x 1.5	32	16	27	3 – 4 x 2	M5	4.5
M20 x 1	38	16	33	3 – 4 x 2	M6	4.5
M20 x 1.5	38	16	33	3 – 4 x 2	M6	8
M22 x 1.5	38	16	33	3 – 4 x 2	M6	8
M24 x 1.5	38	18	33	3 – 5 x 2	M6	8
M25 x 1.5	38	18	33	3 – 5 x 2	M6	8
M27 x 1.5	40	18	35	3 – 5 x 2	M6	8
M30 x 1.5	45	18	40	3 – 5 x 2	M6	8
M33 x 1.5	50	18	45	3 – 5 x 2	M6	8
M35 x 1.5	52	18	47	3 – 5 x 2	M8	18
M36 x 1.5	52	18	47	3 – 5 x 2	M8	18
M39 x 1.5	58	20	52	3 – 6 x 2.5	M8	18
M40 x 1.5	58	20	52	3 – 6 x 2.5	M8	18
M42 x 1.5	62	20	56	3 – 6 x 2.5	M8	18
M45 x 1.5	65	20	59	3 – 6 x 2.5	M8	18
M48 x 1.5	70	20	64	3 – 6 x 2.5	M8	18
M50 x 1.5	70	20	64	3 – 6 x 2.5	M8	18
M52 x 1.5	73	22	66	3 – 7 x 3	M8	18
M55 x 2	75	22	68	3 – 7 x 3	M8	18
M56 x 2	75	22	68	3 – 7 x 3	M8	18
M60 x 2	80	22	73	3 – 7 x 3	M8	18
M64 x 2	85	22	78	3 – 7 x 3	M8	18
M65 x 2	85	22	78	3 – 7 x 3	M8	18
M68 x 2	92	24	84	3 – 8 x 3.5	M8	18
M70 x 2	92	24	84	3 – 8 x 3.5	M8	18
M72 x 2	94	24	86	3 – 8 x 3.5	M8	18
M75 x 2	98	24	90	3 – 8 x 3.5	M8	18
M76 x 2	98	24	90	3 – 8 x 3.5	M8	18
M80 x 2	105	24	96	3 – 8 x 3.5	M8	18
M85 x 2	110	24	102	6 – 8 x 3.5	M8	18
M90 x 2	120	26	108	6 – 10 x 4	M8	18
M95 x 2	125	26	113	6 – 10 x 4	M8	18
M100 x 2	130	26	118	6 – 10 x 4	M8	18
M105 x 2	140	28	125	6 – 10 x 4	M10	35
M110 x 2	145	28	132	6 – 10 x 4	M10	35
M115 x 2	150	28	137	6 – 10 x 4	M10	35
M120 x 2	155	30	142	6 – 12 x 5	M10	35
M125 x 2	160	30	147	6 – 12 x 5	M10	35
M130 x 2	165	30	152	6 – 12 x 5	M10	35
M135 x 2	175	32	160	6 – 12 x 5	M10	35
M140 x 2	180	32	165	6 – 12 x 5	M10	35
M145 x 2	190	32	175	6 – 12 x 5	M10	35
M150 x 2	195	32	180	6 – 12 x 5	M10	35
M155 x 3	200	34	180	6 – 14 x 6	M10	35
M160 x 3	210	34	190	6 – 14 x 6	M10	35
M165 x 3	210	34	190	6 – 14 x 6	M10	35
M170 x 3	220	34	200	6 – 14 x 6	M10	35
M180 x 3	230	36	205	6 – 16 x 7	M12	60
M190 x 3	240	36	215	6 – 16 x 7	M12	60
M200 x 3	250	38	225	6 – 16 x 7	M12	60

Locknut Size	M80, M30, M135, M55, M14, M85, M33, M140, M56, M15, M90, M35, M145, M60, M16, M95, M36, M150, M64, M17, M100, M39, M155, M65, M18, M105, M40, M160, M68, M20, M110, M42, M165, M70, M22, M115, M45, M170, M72, M24, M120, M48, M180, M75, M25, M125, M50, M190, M76, M27, M130, M52, M200
Locknut Thread	1, 1.5, 2, 3
