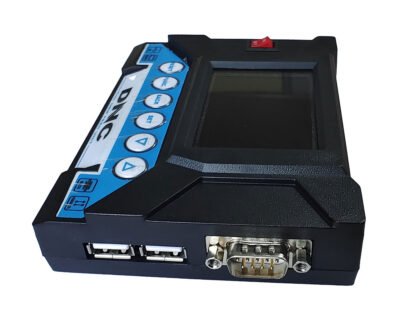

Drip Feed Unit for CNC Machine – DNC

This is a Portable Program Transfer Device that transfers CNC machine programs from a standard USB flash drive (Thumb Drive, Pen Drive, memory stick…) to or from the CNC control through the RS232 communications port, also referred to as Drip feed DNC or Up-Loading & Down-Loading.

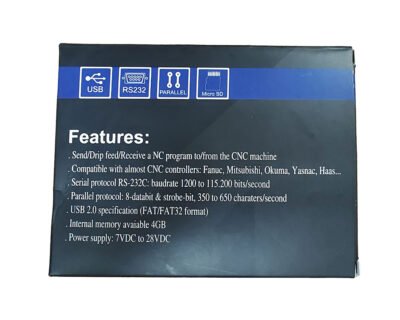

Features:

• Send/Drip Feed/ Receive an NC Program to/from CNC Machines
• Compatible with almost CNC Controllers: FANUC, Mitsubishi, Hass
• Serial protocol RS-232C: Baudrate 1200 to 115.200 bits/second
• Parallel protocol: 8-data-bit & Strobe-bit, 350 to 650 characters/second
• USB 2.0 Specification (FAT/FAT32 format)
• Internal memory available 4 GB
• Power Supply: 24v DC
• Extension of file name supports: *.?NC, *.TXT,*.NC, *tap

Function:

• Function SEND – Send program to CNC machine, monitoring program content when sending
• Function FORCED SEND – Forced transfer of a program to CNC machines without the required signal from CNC machines (Skip XON)
• Function RECEIVE – Receive program/parameter from CNC machine to USB/MEMORY capacity monitoring; Format USB flash drive, etc.

*This model is without a WiFi *
